側彎鏈:內外鏈板間與銷軸套筒間的間隙比標準滾子鏈大,使鏈條增加了橫向彎曲與扭曲性能的鏈條。

側彎鏈條,銷軸和套筒之間的間隙要比標準的滾子鏈的間隙大得多,再加上內外聯接板之間的間隙比較大,才能保證這種鏈在使用時能沿橫向彎成弓形。其基本尺寸規格符合JIS、DIN/ISO滾子鏈的尺寸要求,因此可以使用標準的鏈輪。

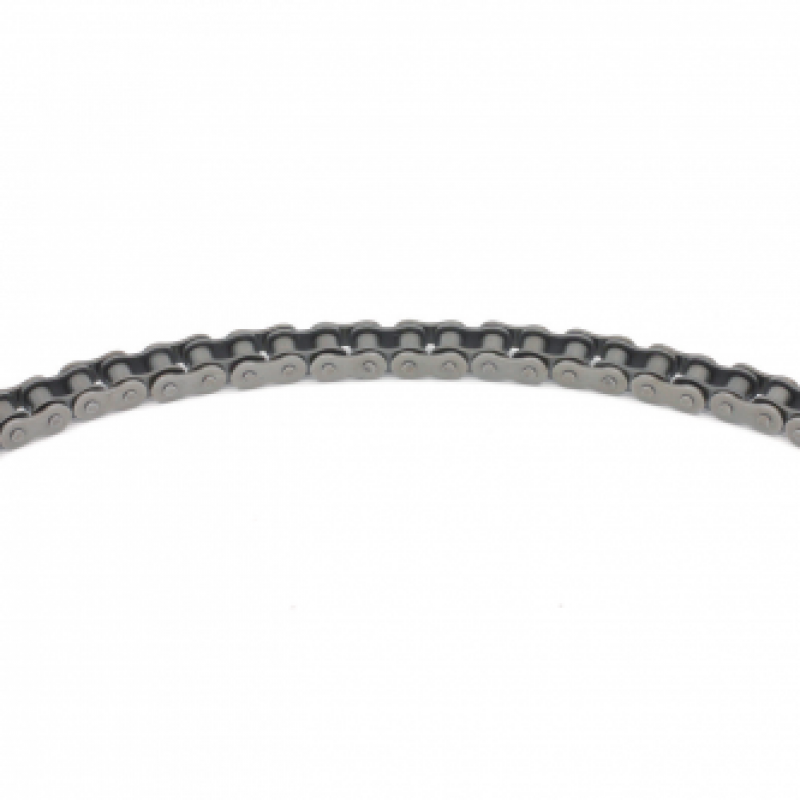

側彎鏈條

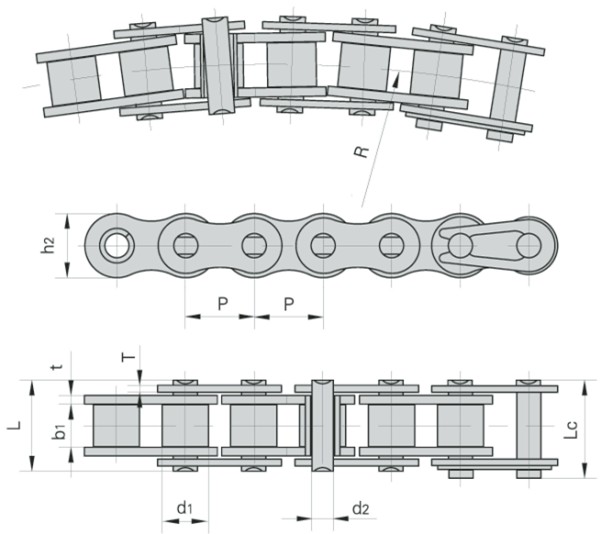

側彎鏈條結構
鏈號節距滾子直徑內節內寬銷軸直徑銷軸長度銷軸長度內鏈板高度鏈板厚度側彎半徑極限拉伸載荷平均拉伸載荷
Chain No.Pdl maxb1 mind2 maxL maxLc maxh2 maxt/T maxR minQ minQo
mmmmmmmmmmmmmmmmmmkN/LBkN
40SB12.77.957.853.9616.918.111.71.535013.8/313615.2
43SB12.77.957.853.4518.319.511.71.530512/272713.2
50SB15.87510.169.404.3720.722.714.92.0340020.6/468122.7
60SB19.0511.9112.575.3426.628.418.02.4250015.7/35681.7.3
63SB19.0511.9112.685.0828.830.617.22.42/2.0335012.5/284020.0
80SB25.415.8815.757.1934.037.324.03.2571140.9/920142.0
08BSB12.78.517.753.9717.418.711.81.640014/318215.4
08BSBF112.78.517.753.9716.317.611.81.6/1.240012.8/290914.1
10BSB15.87510.169.654.5020.121.514.71.740015.6/354517.2
12BSB19.0512.0711.685.1223.124.816.01.8550020.5/465822.6
16BSB25.415.8817.227.9036.539.721.03.7/3.050055.6/1263564.0
C2050SB31.7510.169.405.0821.322.615.02.0380021.8/495424.1
側彎鏈條參數
